Miscellaneous Projects

QEP has extensive experience with a myriad of nuclear power plant projects. On this page you can see photos of a small percentage of these projects....please contact us if you see something that looks like it might fit your needs, or if you have a need that is not shown here. The chances are good that we have the experience to help. We are constantly being asked: "Could you build us something that will help us do this....?"

Images

Click on any image to view larger images.

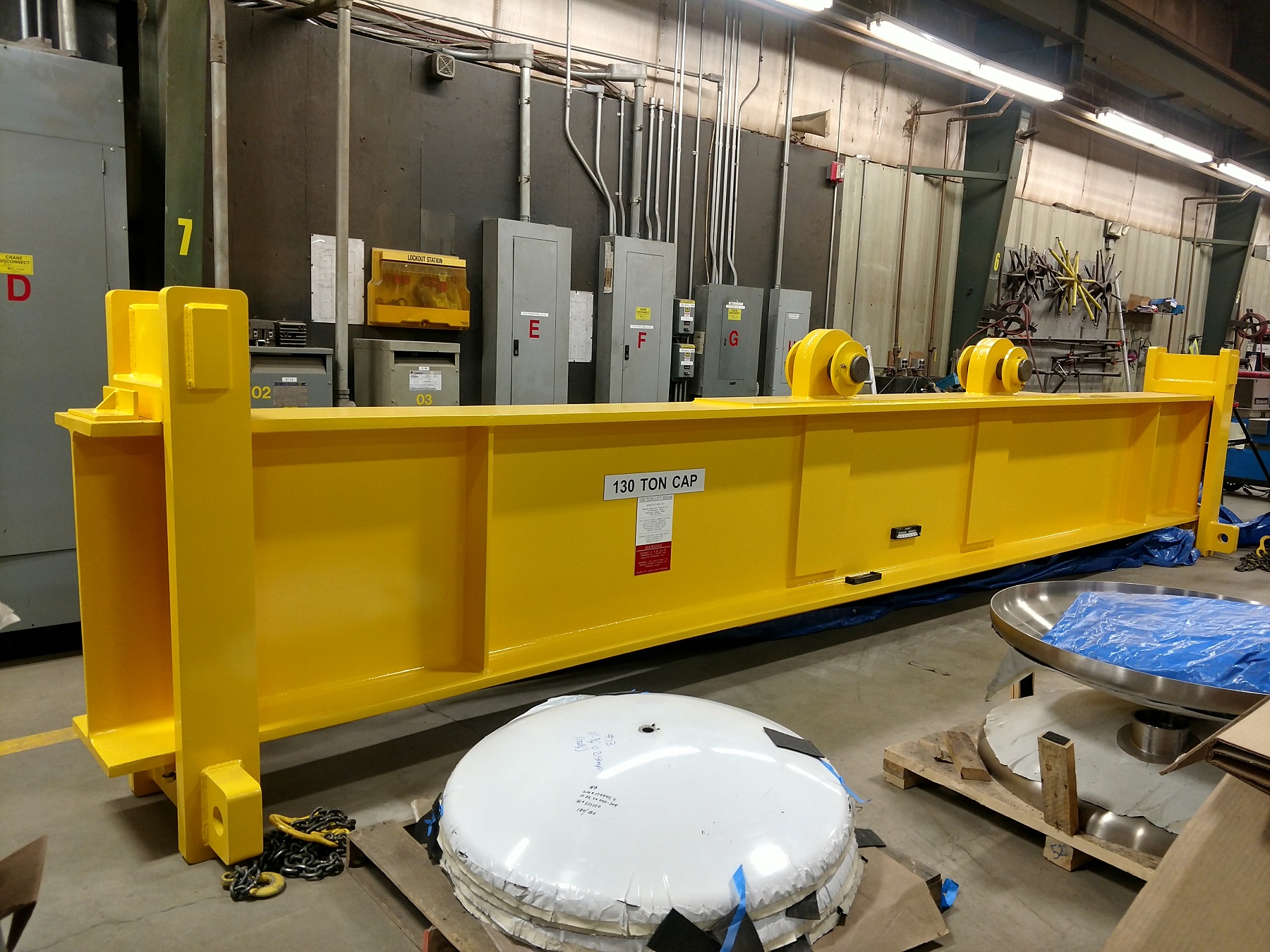

130 ton adjustable turbine rotor lifting beam

130 ton adjustable turbine rotor lifting beam

stud racks
130 ton adjustable turbine rotor lifting beam

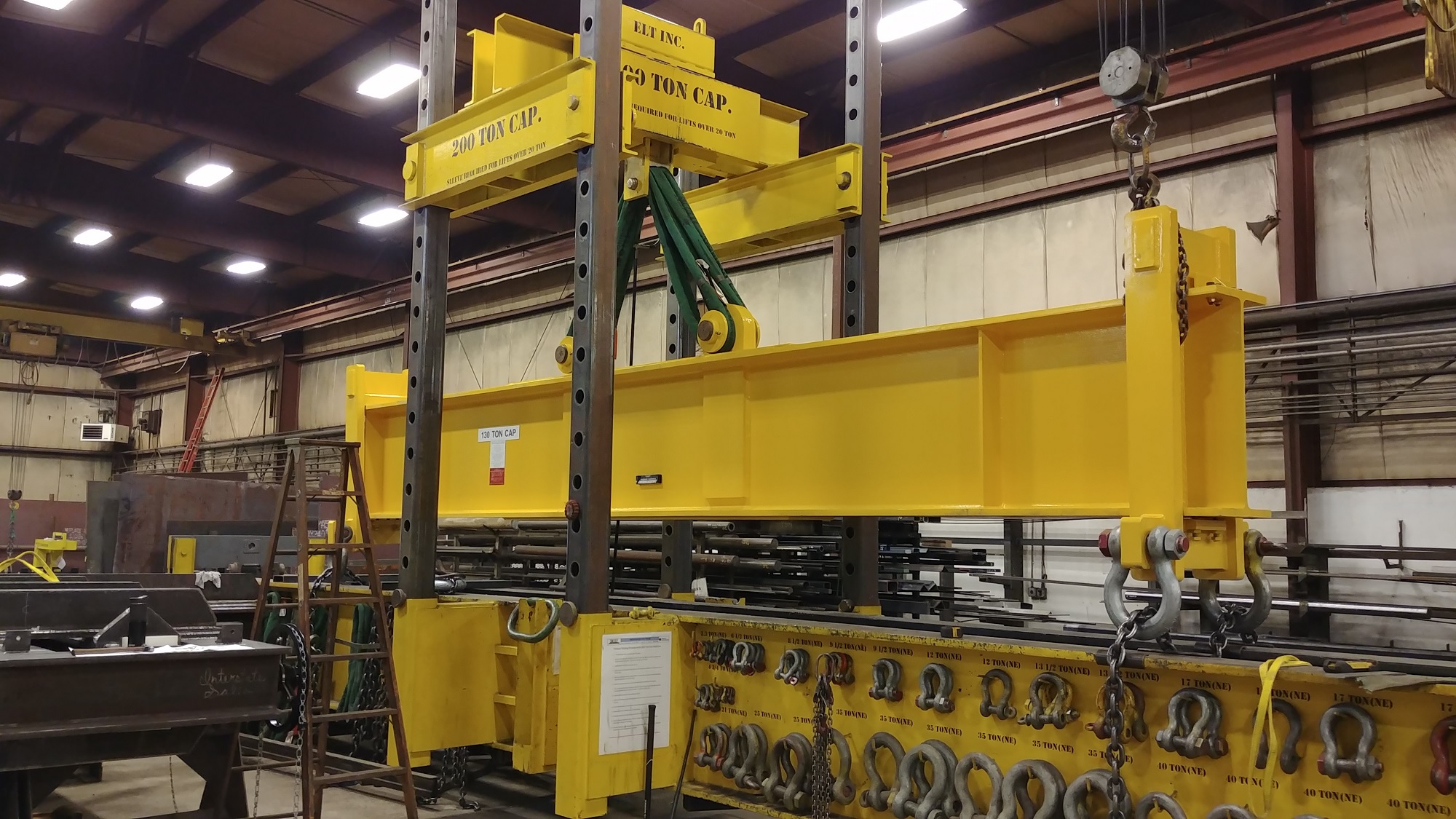

The "162 ton load test" photo is a photo of the same beam being load tested and certified at an independent testing facility. To meet certifications, it had to be load tested at 125% of it's rated capacity. Hence the 162.5 ton load test.

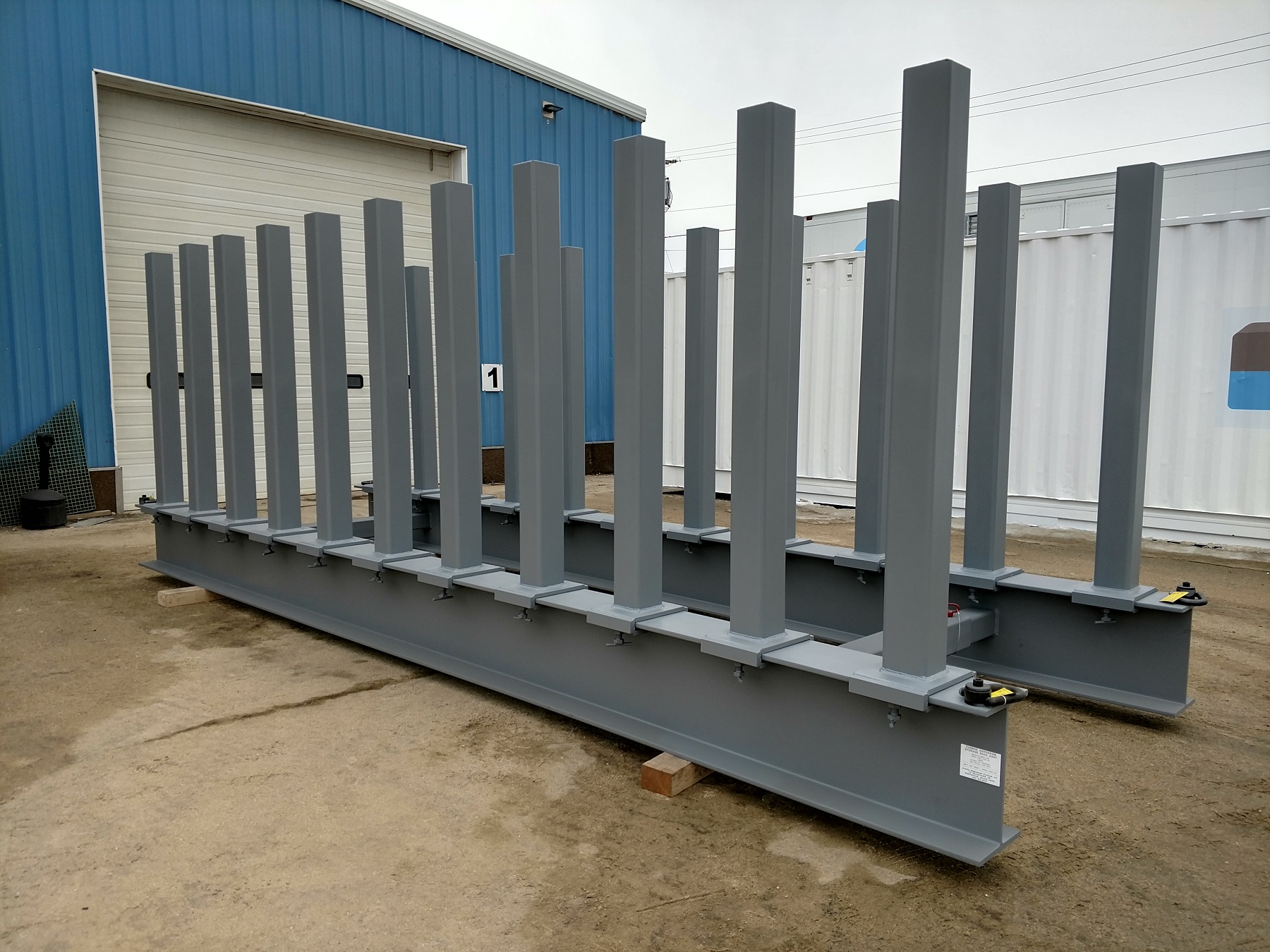

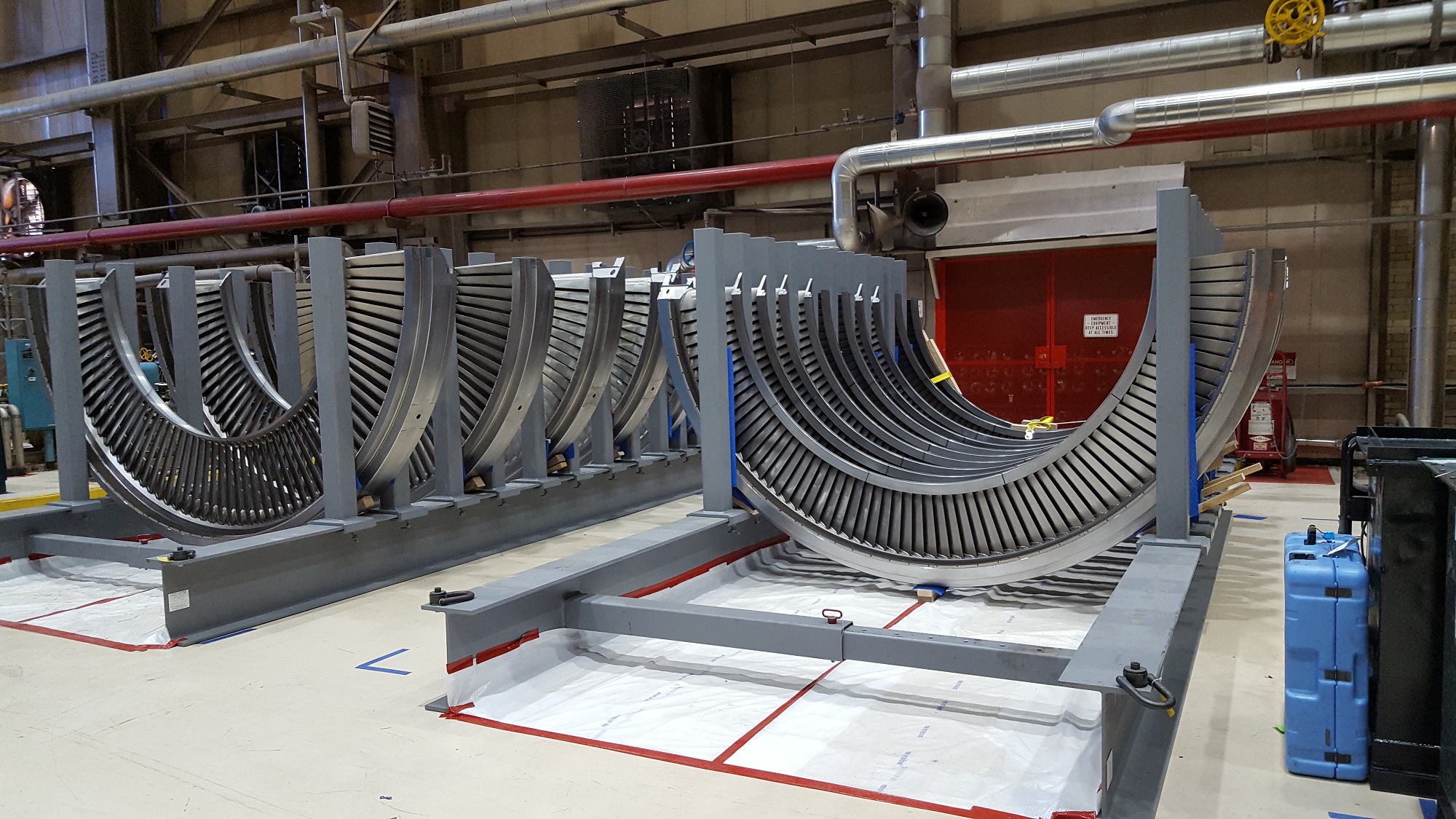

Adjustable turbine diaphragm storage rack

This is an adjustable turbine diaphragm storage rack. It is used to hold steam turbine diaphragm half sections during plant maintenance.

RCP Motor Enclosure
RCP Motor Storage enclosure

This project was the design and construction of a storage enclosure for a reactor coolant pump motor. The base assembly was designed to spread the weight over the floor to acceptable levels and to allow under motor maintenance access.

RCP Motor Storage enclosure

The final assembly included modular aluminum walls that completed the enclosure. These wall assemblies also included integral access walkways to allow for upper motor maintenance during storage.


Replacement oil pans

These were designed as replacement oil pans for large reactor coolant pump motors as the originals were multi-piece and painted steel. The titanium version reduced component complexity and weight drastically, while also reducing removal and installation time saving personnel radiation exposure. The titanium also eliminated a paint peeling problem created by the original steel version.

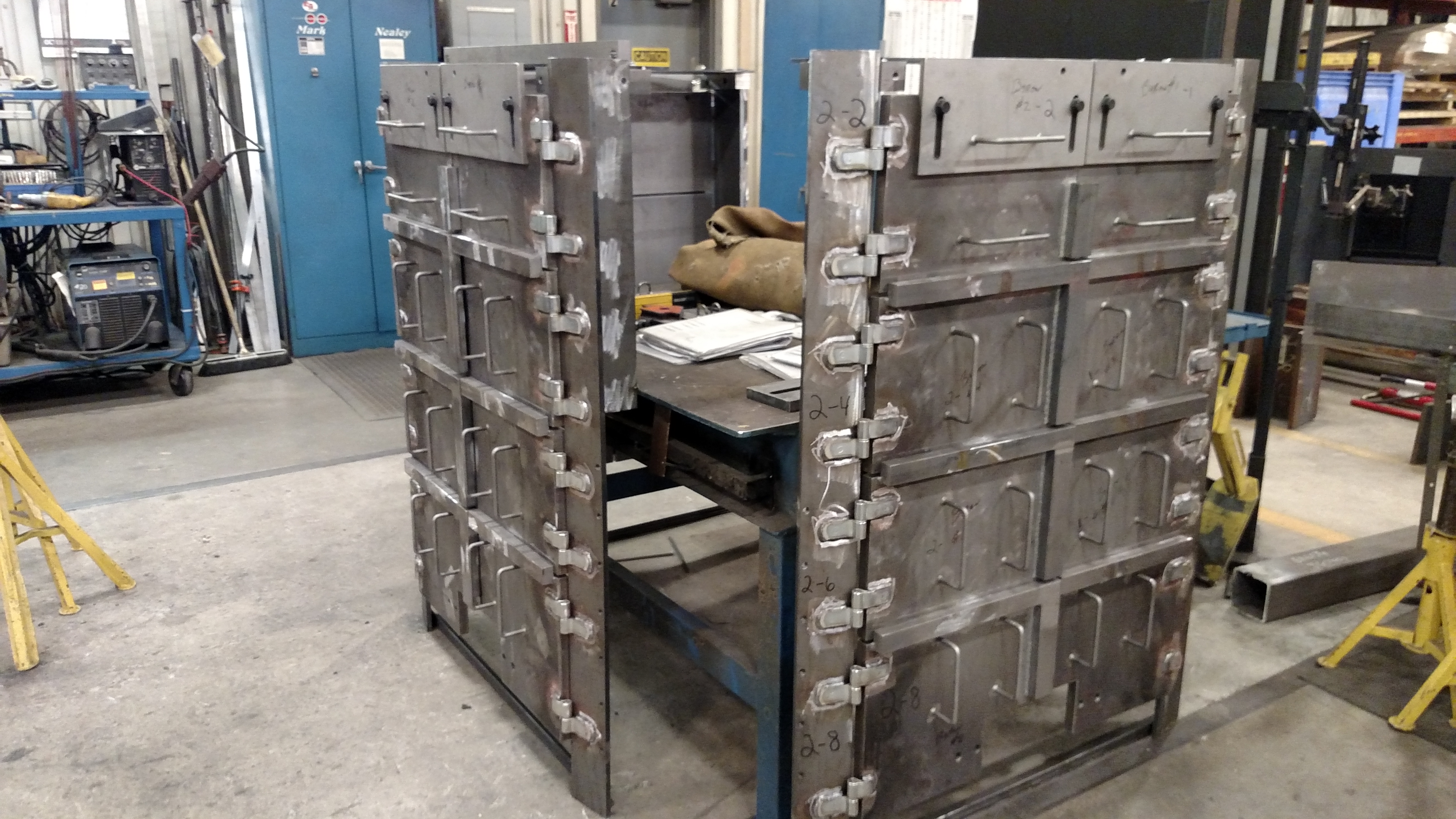

shield door
Under Head Shield Door Assemblies

1" thick segmented shield door assemblies for use during vessel head inspections.

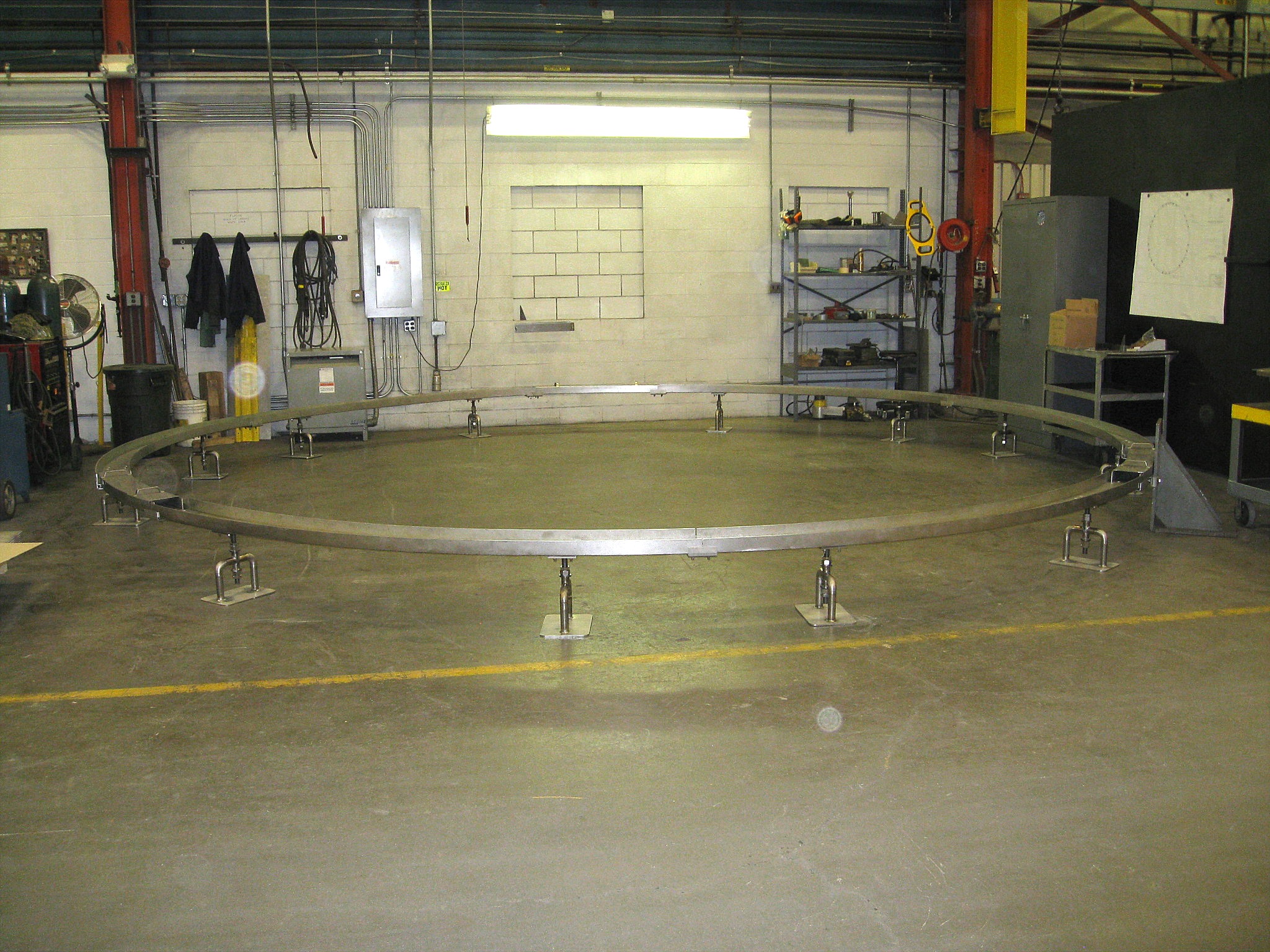

Adjustable Height Stainless Steel RV O-Ring Support Tray Assembly

A stainless steel adjustable height reactor vessel O-Ring support tray assembly used to pre-stage and protect to O-Rings prior to installation on the underside of the reactor head. This was designed and built for Brown's Ferry Nuclear Station in Athens, Alabama

Finished RV Insulation Rack
RV Head Shielding and Insulation Handling Racks

Custom stainless steel handling racks for reactor vessel shielding and insulation handling.

Chain Fall & Sling Storage Carts
Chain Fall & Sling Storage Carts
CRDM Shroud FME Covers
CRDM Shroud FME Covers
Heavy-Duty Equipment Hatch Floor System
Heavy-Duty Equipment Hatch Floor System
RV Stud Can Storage & Handling Carts
RV Stud Can Storage & Handling Carts
RV Stud Tensioner Handling Skids
RV Stud Tensioner Handling Skids
18,000 Watt RV Light Ring
18,000 Watt RV Light Ring
BWR Dry Well Head Stands
BWR Dry Well Head Stands
Underwater Radiation Detector Array Cart
Underwater Radiation Detector Array Cart

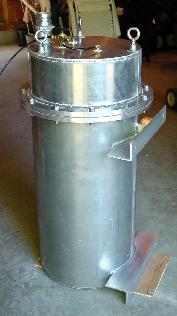

Underwater ISOCS Radiation Detector Housing
Underwater ISOCS Radiation Detector Housing

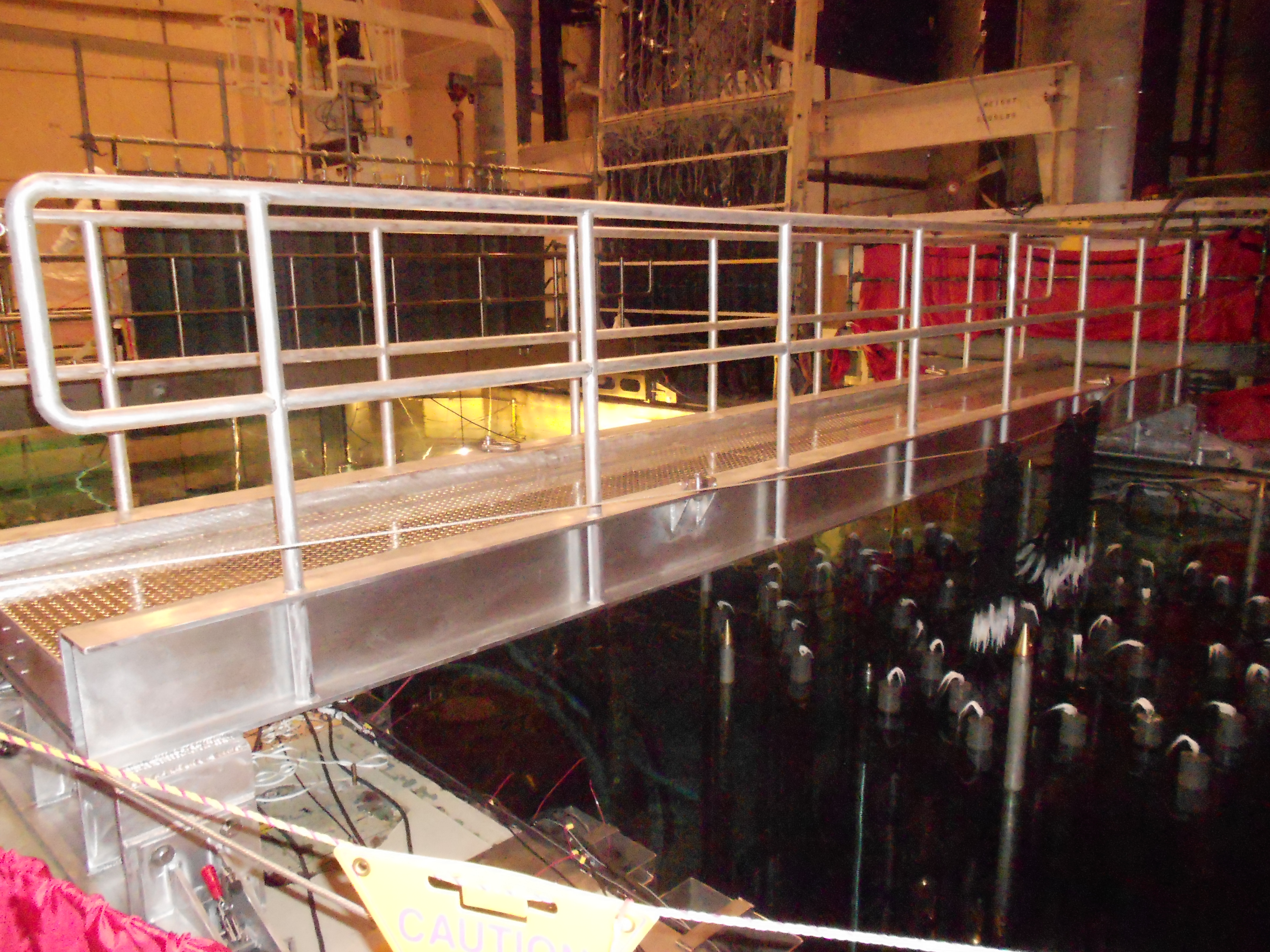

Temporary Aluminum Refuel Cavity Access Bridge
Temporary Aluminum Refuel Cavity Access Bridge
Underwater Tri-Nuc Vacuum & Filter Platform
Underwater Tri-Nuc Vacuum & Filter Platform
Reactor vessel flange shield
Reactor vessel flange shield with tungsten blankets and supplemental test load weight.

Shield is used for repair of the vessel o-ring surface and stud hole maintenance.
